FSW4
Thermotron-CE manufactures customized float switches tailored to customer-specific designs and application requirements.
We offer a wide range of float materials, including:
- SS304
- SS316
- Teflon (PTFE)
- Foam
- Buna-N
- Polypropylene (PP)
Each float material is carefully selected based on the type of liquid being measured, as well as its density, chemical properties, and operating conditions. These factors are critical in determining the most suitable float material to ensure accurate level detection, long service life, and reliable performance in the intended application.
General Specification for Float Level Switch
|
Description |
|
| Switching Capacity Max | 50W |
| Switching Voltage | 140VAC/240VAC/150VDC |
| Switching Current Max (A) | 0.5A |
| Carry Current Max (A) | 1.0A |
| Lead Wire | Teflon / PVC |
| Reversible Switch Action | Yes |
| Operating Temperature | -10-120⁰C – SS316
-20 – 80⁰C – PP |

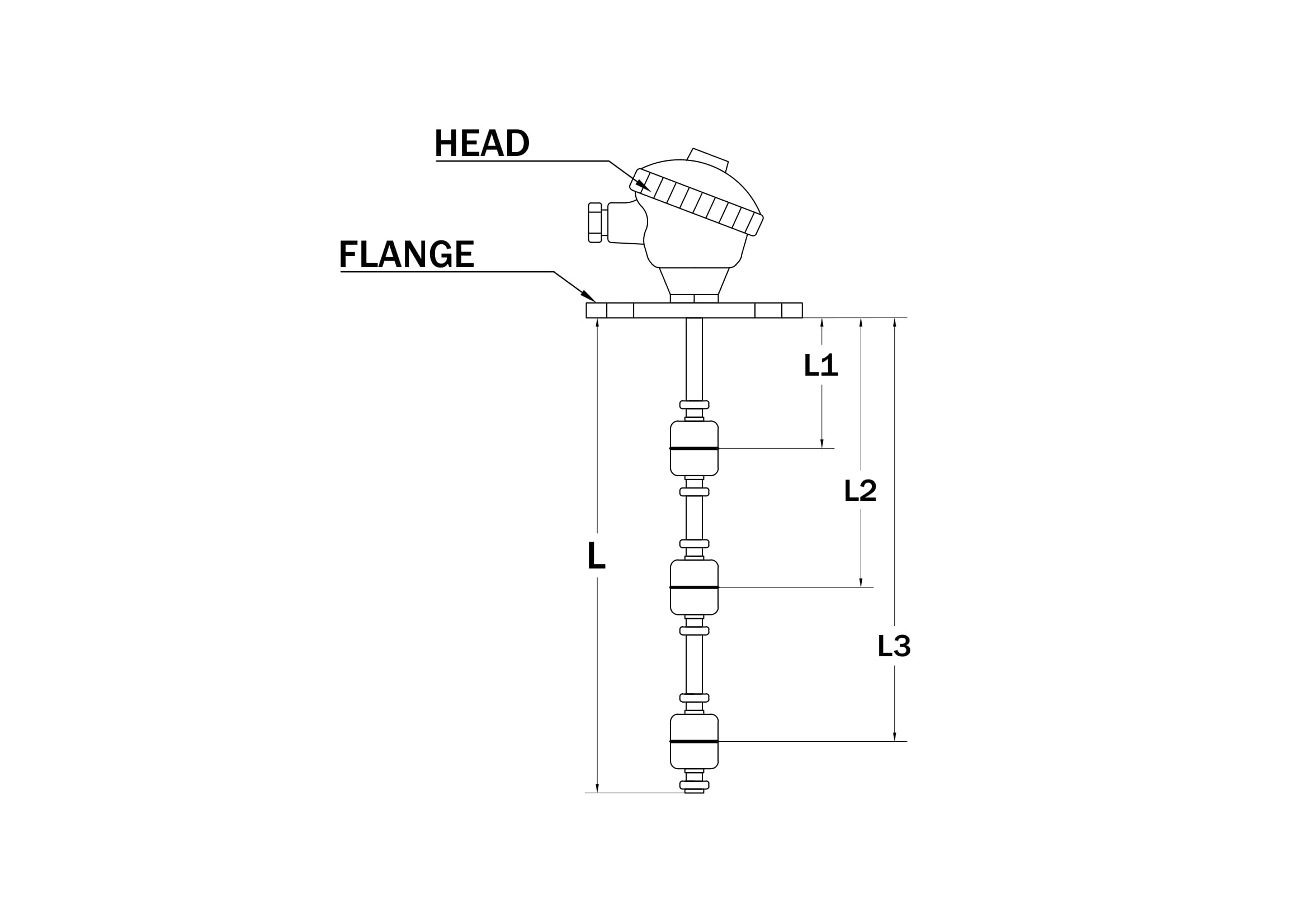

Model FSW4 is designed with a flange or mounting plate, customized to suit the customer’s tank configuration for secure and stable installation. This model is commonly applied in large-capacity tanks where multiple level points are required.
To accommodate high-volume liquid levels, FSW4 supports larger float sizes, including 3” float balls, providing reliable buoyancy and consistent level detection in demanding industrial applications.
- SS304
- SS316
- Teflon (PTFE)
- Foam
- Buna-N
- Polypropylene (PP)
|
Description |
|
| Switching Capacity Max | 50W |
| Switching Voltage | 140VAC/240VAC/150VDC |
| Switching Current Max (A) | 0.5A |
| Carry Current Max (A) | 1.0A |
| Lead Wire | Teflon / PVC |
| Reversible Switch Action | Yes |
| Operating Temperature | -10-120⁰C – SS316 -20 - 80⁰C – PP |
Model FSW4 is designed with a flange or mounting plate, customized to suit the customer’s tank configuration for secure and stable installation. This model is commonly applied in large-capacity tanks where multiple level points are required.
To accommodate high-volume liquid levels, FSW4 supports larger float sizes, including 3” float balls, providing reliable buoyancy and consistent level detection in demanding industrial applications.
