FSW2
LEVEL – Float Level Switch / Sensor (Analog Output)
Float level switches and sensors are designed for reliable liquid level detection in tanks. Operation is based on a magnetic float activating an internal switch inside the probe.
Available as a level switch with contact output or a level sensor with 4–20 mA analog output, this is one of our core and most popular products. Sensors can be custom-designed for different pressures, tank sizes, and liquid types.
A wide selection of materials for parts in contact with liquid, including SS304, SS316, PP, and Teflon, ensures compatibility with corrosive or acidic liquids. Various mounting and fitting options are available to suit your installation needs.
Standard Float Sizes: 1” | 2” | 3”
Float Materials: SS304 | SS316 | Teflon | Foam | Buna-N | PP
General Specification for Float Level Switch
| Description | |
| Switching Capacity Max | 50W |
| Switching Voltage | 140VAC/240VAC/150VDC |
| Switching Current Max (A) | 0.5A |
| Carry Current Max (A) | 1.0A |
| Lead Wire | Teflon / PVC |
| Reversible Switch Action | Yes |
| Operating Temperature | -10-120⁰C – SS316
-20 – 80⁰C – PP |

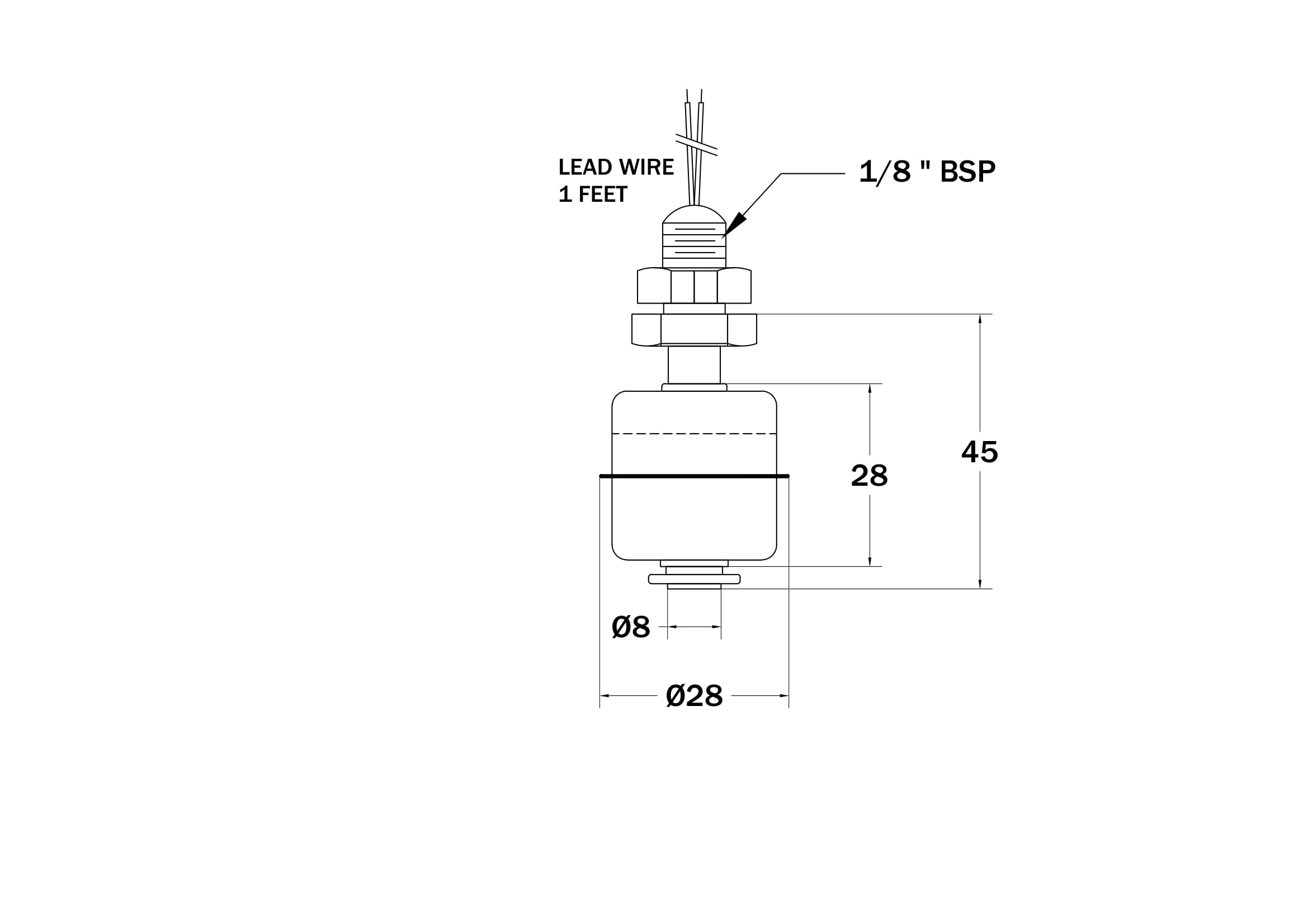

Model FSW2 – Standard Straight Float Switch
FSW2 is our most straightforward float switch, designed for general-purpose applications. This standard model is available from stock, making it ideal for fast deployment in a variety of tanks.
| Description | |
| Switching Capacity Max | 50W |
| Switching Voltage | 140VAC/240VAC/150VDC |
| Switching Current Max (A) | 0.5A |
| Carry Current Max (A) | 1.0A |
| Lead Wire | Teflon / PVC |
| Reversible Switch Action | Yes |
| Operating Temperature | -10-120⁰C – SS316 -20 - 80⁰C – PP |
Model FSW2 – Standard Straight Float Switch
FSW2 is our most straightforward float switch, designed for general-purpose applications. This standard model is available from stock, making it ideal for fast deployment in a variety of tanks.
